Technical characteristics

Frame Range

H80~280

Power Range

0.18~90kW

Rated Voltage

380V(Special voltage customization)

Rated Frequency

50Hz(Special frequency customization)

Poles

2、4、6、8

Protection Degree

IP54

Cooling ModeIC411Insulation ClassH
Operation ModeS1Installation ModeB3、B5、B35
Wiring ModeY/?

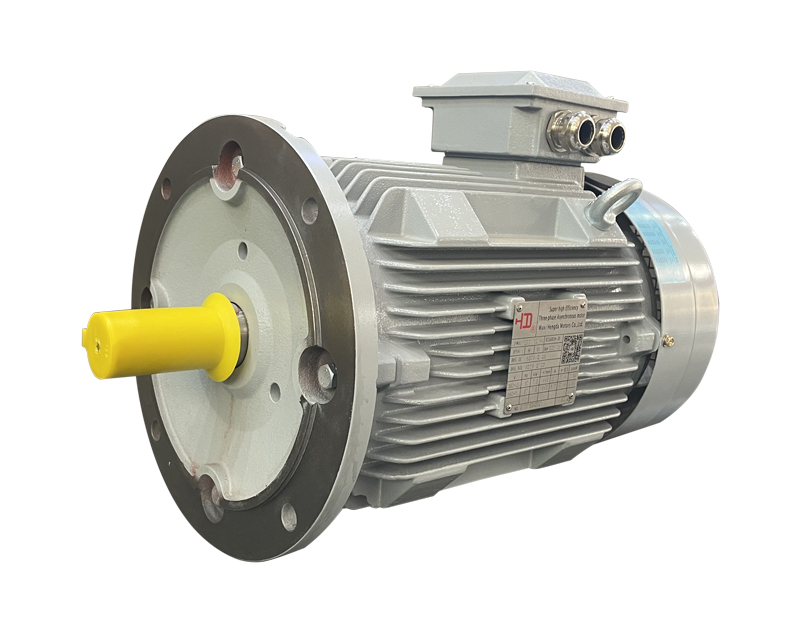

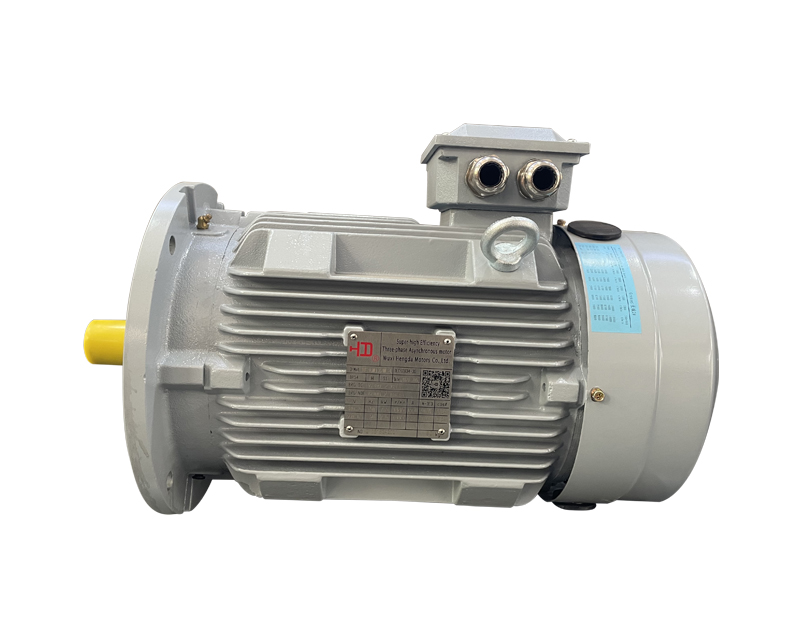

High temperature resistant three-phase asynchronous motor

High temperature resistant motor is a new type of motor successfully developed by our company in the printing and dyeing machinery industry according to the requirements of users. It has a new appearance. It has added front and rear end cover injection and oil drain holes. At the same time, an oil rejection structure is added in the inner cover to prevent grease from squeezing into the inner cavity of the motor during refueling. And the standard oil pipe is connected to the tail of the motor, so that the user can normally refuel the bearing without disassembling the motor. When the service environment is ≤ 55 ℃, the outlet shaft, flange and other parts can work continuously under the harsh environment where the temperature rises to 250 ℃. All bearings are special bearings with high temperature resistance. When the motor runs for about 1500 hours, it should be filled with high temperature resistance grease to ensure the service life of the bearing. All motor materials are made of H-class insulating materials to prolong the service life of the motor and ensure the continuous production of printing and dyeing machinery industry. It has the characteristics of compact structure, reliable performance, convenience and durability.

Operating conditions
  • -15°C~+40°C
    Ambient air temperature
  • ≤90% (At25°C)
    Monthly average maximum relative humidity of ambient air
  • ≤1KM
    Altitude
  • YE2GWHigh temperature resistant three-phase asynchronous motor

    ModelPolesRated
    Power
    CurrentRated
    Speed
    Rated
    Torque
    EfficiencyPower
    Factor
    NoiseProtection DegreeInsulation
    Class
    DutyConnection FrequencyRated
    Voltage
    kWAr/minN·mηcosΦdBHzV
    YE2GW80M1-220.751.8 28452.4 77.40.82 62IP55FS1Y50380
    YE2GW80M2-221.12.5 28403.5 79.60.83 62IP55FS1Y50380
    YE2GW90S-221.53.3 28404.8 81.30.84 67IP55FS1Y50380
    YE2GW90L-222.24.7 28407.0 83.20.85 67IP55FS1Y50380
    YE2GW100L-223.0 6.2 28609.6 84.60.87 74IP55FS1Y50380
    YE2GW112M-224.0 8.0 289012.7 85.80.88 77IP55FS1?50380
    YE2GW132S1-225.510.9 291017.5 870.88 79IP55FS1?50380
    YE2GW132S2-227.514.5 290523.9 88.10.89 79IP55FS1?50380
    YE2GW160M1-221121.0 293535.0 89.40.89 81IP55FS1?50380
    YE2GW160M2-221528.4 293547.8 90.30.89 81IP55FS1?50380
    YE2GW160L-2218.534.7 293558.9 90.90.89 81IP55FS1?50380
    YE2GW180M-222241.1 294070.0 91.30.89 83IP55FS1?50380
    YE2GW200L1-223055.7 294595.5 920.89 84IP55FS1?50380
    YE2GW200L2-223768.3 2945117.8 92.50.89 84IP55FS1?50380
    YE2GW225M-224582.7 2950143.3 92.90.89 86IP55FS1?50380
    YE2GW250M-2255100.7 2965175.1 93.20.89 89IP55FS1?50380
    YE2GW280S-2275136.5 2965238.8 93.80.89 91IP55FS1?50380
    YE2GW280M-2290163.3 2965286.5 94.10.89 91IP55FS1?50380
    YE2GW80M1-440.551.4 14153.5 77.10.75 56IP55FS1Y50380
    YE2GW80M2-440.751.9 13804.8 79.60.76 56IP55FS1Y50380
    YE2GW90S-441.12.7 13907.0 81.40.77 59IP55FS1Y50380
    YE2GW90L-441.53.5 13909.6 82.80.78 59IP55FS1Y50380
    YE2GW100L1-442.25.0 141014.0 84.30.80 64IP55FS1Y50380
    YE2GW100L2-443.0 6.6 141019.1 85.50.81 64IP55FS1Y50380
    YE2GW112M-444.0 8.7 144025.5 86.60.81 65IP55FS1?50380
    YE2GW132S-445.511.6 144535.0 87.70.82 71IP55FS1?50380
    YE2GW132M-447.515.5 144547.8 88.70.83 71IP55FS1?50380
    YE2GW160M-441122.4 146070.0 89.80.83 73IP55FS1?50380
    YE2GW160L-441529.9 146095.5 90.60.84 73IP55FS1?50380
    YE2GW180M-4418.536.3 1470117.8 91.20.85 76IP55FS1?50380
    YE2GW180L-442242.9 1470140.1 91.60.85 76IP55FS1?50380
    YE2GW200L-443058.1 1470191.0 92.30.85 76IP55FS1?50380
    YE2GW225S-443770.5 1475235.6 92.70.86 78IP55FS1?50380
    YE2GW225M-444585.4 1475286.5 93.10.86 78IP55FS1?50380
    YE2GW250M-4455103.9 1475350.2 93.50.86 79IP55FS1?50380
    YE2GW280S-4475139.3 1485477.5 940.87 80IP55FS1?50380
    YE2GW280M-4490165.0 1485573.0 94.20.88 80IP55FS1?50380
    YE2GW80M1-660.371.2 8953.5 67.60.70 54IP55FS1Y50380
    YE2GW80M2-660.551.6 9005.3 73.10.72 54IP55FS1Y50380
    YE2GW90S-660.752.1 9157.2 75.90.71 57IP55FS1Y50380
    YE2GW90L-661.13.0 91510.5 78.10.72 57IP55FS1Y50380
    YE2GW100L-661.54.0 92014.3 79.80.72 61IP55FS1Y50380
    YE2GW112M-662.25.7 94021.0 81.80.72 65IP55FS1Y50380
    YE2GW132S-663.0 7.6 96028.7 83.30.72 69IP55FS1Y50380
    YE2GW132M1-664.0 9.7 96038.2 84.60.74 69IP55FS1?50380
    YE2GW132M2-665.513.0 96052.5 860.75 69IP55FS1?50380
    YE2GW160M-667.516.8 97071.6 87.20.78 73IP55FS1?50380
    YE2GW160L-661123.9 970105.1 88.70.79 73IP55FS1?50380
    YE2GW180L-661531.0 970143.3 89.70.82 73IP55FS1?50380
    YE2GW200L1-6618.538.9 975176.7 90.40.80 73IP55FS1?50380
    YE2GW200L2-662245.4 975210.1 90.90.81 73IP55FS1?50380
    YE2GW225M-663060.6 980286.5 91.70.82 74IP55FS1?50380
    YE2GW250M-663773.5 980353.4 92.20.83 76IP55FS1?50380
    YE2GW280S-664586.8 980429.8 92.70.85 78IP55FS1?50380
    YE2GW280M-6655104.4 980525.3 93.10.86 78IP55FS1?50380
    YE2GW80M1-880.181.0 6552.3 45.90.61 52IP55FS1Y50380
    YE2GW80M2-880.251.2 6553.2 50.60.61 52IP55FS1Y50380
    YE2GW90S-880.371.6 6804.7 56.10.61 56IP55FS1Y50380
    YE2GW90L-880.552.2 6807.0 61.70.61 56IP55FS1Y50380
    YE2GW100L1-880.752.6 6909.6 66.20.67 59IP55FS1Y50380
    YE2GW100L2-881.13.4 69014.0 70.80.69 59IP55FS1Y50380
    YE2GW112M-881.54.4 69519.1 74.10.70 61IP55FS1Y50380
    YE2GW132S-882.26.1 71528.0 77.60.71 64IP55FS1Y50380
    YE2GW132M-8837.8 71538.2 800.73 64IP55FS1Y50380
    YE2GW160M1-88410.2 72050.9 81.90.73 68IP55FS1?50380
    YE2GW160M2-885.513.5 72070.0 83.80.74 68IP55FS1?50380
    YE2GW160L-887.517.8 72095.5 85.30.75 68IP55FS1?50380
    YE2GW180L-881125.6 725140.1 86.90.75 70IP55FS1?50380
    YE2GW200L-881534.1 730191.0 880.76 73IP55FS1?50380
    YE2GW225S-8818.541.7 735235.6 88.60.76 73IP55FS1?50380
    YE2GW225M-882248.1 735280.1 89.10.78 73IP55FS1?50380
    YE2GW250M-883064.3 730382.0 89.80.79 75IP55FS1?50380
    YE2GW280S-883778.8 735471.1 90.30.79 76IP55FS1?50380
    YE2GW280M-884595.4 735573.0 90.70.79 76IP55FS1?50380


    YE3GWHigh temperature resistant three-phase asynchronous motor

    ModelPolesRated
    Power
    CurrentRated
    Speed
    Rated
    Torque
    EfficiencyPower
    Factor
    Noise Protection DegreeInsulation
    Class
    DutyConnectionFrequencyRated
    Voltage
    kWAr/minN·mηcosΦdBHzV
    YE3GW80M1-220.751.7 28452.4 80.7 0.82 62 IP55FS1Y50380
    YE3GW80M2-221.12.4 28403.5 82.7 0.83 62 IP55FS1Y50380
    YE3GW90S-221.53.2 28404.8 84.2 0.84 67 IP55FS1Y50380
    YE3GW90L-222.24.6 28407.0 85.9 0.85 67 IP55FS1Y50380
    YE3GW100L-2236.0 28609.6 87.1 0.87 74 IP55FS1Y50380
    YE3GW112M-2247.8 289012.7 88.1 0.88 77 IP55FS1?50380
    YE3GW132S1-225.510.6 291017.5 89.2 0.88 79 IP55FS1?50380
    YE3GW132S2-227.514.4 290523.9 90.1 0.88 79 IP55FS1?50380
    YE3GW160M1-221120.6 293535.0 91.2 0.89 81 IP55FS1?50380
    YE3GW160M2-221527.9 293547.8 91.9 0.89 81 IP55FS1?50380
    YE3GW160L-2218.534.2 293558.9 92.4 0.89 81 IP55FS1?50380
    YE3GW180M-222240.5 294070.0 92.7 0.89 83 IP55FS1?50380
    YE3GW200L1-223054.9 294595.5 93.3 0.89 84 IP55FS1?50380
    YE3GW200L2-223767.4 2945117.8 93.7 0.89 84 IP55FS1?50380
    YE3GW225M-224580.8 2950143.3 94.0 0.90 86 IP55FS1?50380
    YE3GW250M-225598.5 2965175.1 94.3 0.90 89 IP55FS1?50380
    YE3GW280S-2275133.7 2965238.8 94.7 0.90 91 IP55FS1?50380
    YE3GW280M-2290159.9 2965286.5 95.0 0.90 91 IP55FS1?50380
    YE3GW80M1-440.551.4 13803.5 80.8 0.75 56 IP55FS1Y50380
    YE3GW80M2-440.751.8 13804.8 82.5 0.75 56 IP55FS1Y50380
    YE3GW90S-441.12.6 13907.0 84.1 0.76 59 IP55FS1Y50380
    YE3GW90L-441.53.5 13909.6 85.3 0.77 59 IP55FS1Y50380
    YE3GW100L1-442.24.8 141014.0 86.7 0.81 64 IP55FS1Y50380
    YE3GW100L2-4436.3 141019.1 87.7 0.82 64 IP55FS1Y50380
    YE3GW112M-4448.4 144025.5 88.6 0.82 65 IP55FS1?50380
    YE3GW132S-445.511.2 144535.0 89.6 0.83 71 IP55FS1?50380
    YE3GW132M-447.515.0 144547.8 90.4 0.84 71 IP55FS1?50380
    YE3GW160M-441121.5 147070.0 91.4 0.85 73 IP55FS1?50380
    YE3GW160L-441528.8 147095.5 92.1 0.86 73 IP55FS1?50380
    YE3GW180M-4418.535.3 1470117.8 92.6 0.86 76 IP55FS1?50380
    YE3GW180L-442241.8 1470140.1 93.0 0.86 76 IP55FS1?50380
    YE3GW200L-443056.6 1470191.0 93.6 0.86 76 IP55FS1?50380
    YE3GW225S-443769.6 1475235.6 93.9 0.86 78 IP55FS1?50380
    YE3GW225M-444584.4 1475286.5 94.2 0.86 78 IP55FS1?50380
    YE3GW250M-4455102.7 1475350.2 94.6 0.86 79 IP55FS1?50380
    YE3GW280S-4475136.3 1485477.5 95.0 0.88 80 IP55FS1?50380
    YE3GW280M-4490163.2 1485573.0 95.2 0.88 80 IP55FS1?50380
    YE3GW80M1-660.371.1 9003.5 73.5 0.70 54 IP55FS1Y50380
    YE3GW80M2-660.551.5 9005.3 77.2 0.72 54 IP55FS1Y50380
    YE3GW90S-660.752.0 9157.2 78.9 0.71 57 IP55FS1Y50380
    YE3GW90L-661.12.8 91510.5 81.0 0.73 57 IP55FS1Y50380
    YE3GW100L-661.53.8 92014.3 82.5 0.73 61 IP55FS1Y50380
    YE3GW112M-662.25.4 94021.0 84.3 0.74 65 IP55FS1Y50380
    YE3GW132S-6637.2 96028.7 85.6 0.74 69 IP55FS1Y50380
    YE3GW132M1-6649.5 96038.2 86.8 0.74 69 IP55FS1?50380
    YE3GW132M2-665.512.7 96052.5 88.0 0.75 69 IP55FS1?50380
    YE3GW160M-667.516.2 97071.6 89.1 0.79 73 IP55FS1?50380
    YE3GW160L-661123.1 970105.1 90.3 0.80 73 IP55FS1?50380
    YE3GW180L-661530.9 970143.3 91.2 0.81 73 IP55FS1?50380
    YE3GW200L1-6618.537.8 975176.7 91.7 0.81 73 IP55FS1?50380
    YE3GW200L2-662244.8 975210.1 92.2 0.81 73 IP55FS1?50380
    YE3GW225M-663059.1 980286.5 92.9 0.83 74 IP55FS1?50380
    YE3GW250M-663771.7 980353.4 93.3 0.84 76 IP55FS1?50380
    YE3GW280S-664585.8 980429.8 93.7 0.85 78 IP55FS1?50380
    YE3GW280M-6655103.3 980525.3 94.1 0.86 78 IP55FS1?50380
    YE3GW80M1-880.180.8 6652.3 58.7 0.61 52 IP55FS1Y50380
    YE3GW80M2-880.251.0 6653.2 64.1 0.61 52 IP55FS1Y50380
    YE3GW90S-880.371.3 6854.7 69.3 0.61 56 IP55FS1Y50380
    YE3GW90L-880.551.9 6857.0 73.0 0.61 56 IP55FS1Y50380
    YE3GW100L1-880.752.3 7059.6 75.0 0.67 59 IP55FS1Y50380
    YE3GW100L2-881.13.1 70514.0 77.7 0.69 59 IP55FS1Y50380
    YE3GW112M-881.54.1 70519.1 79.7 0.70 61 IP55FS1Y50380
    YE3GW132S-882.25.7 72028.0 81.9 0.71 64 IP55FS1Y50380
    YE3GW132M-8837.5 72038.2 83.5 0.73 64 IP55FS1Y50380
    YE3GW160M1-8849.8 72050.9 84.8 0.73 68 IP55FS1?50380
    YE3GW160M2-885.513.1 72070.0 86.2 0.74 68 IP55FS1?50380
    YE3GW160L-887.517.4 72095.5 87.3 0.75 68 IP55FS1?50380
    YE3GW180L-881125.2 730140.1 88.6 0.75 70 IP55FS1?50380
    YE3GW200L-881533.5 730191.0 89.6 0.76 73 IP55FS1?50380
    YE3GW225S-8818.541.0 735235.6 90.1 0.76 73 IP55FS1?50380
    YE3GW225M-882247.3 735280.1 90.6 0.78 73 IP55FS1?50380
    YE3GW250M-883063.2 730382.0 91.3 0.79 75 IP55FS1?50380
    YE3GW280S-883777.5 735471.1 91.8 0.79 76 IP55FS1?50380
    YE3GW280M-884593.9 735573.0 92.2 0.79 76 IP55FS1?50380
