Technical characteristics

Frame Range	H150/160	Power Range	3~7.5kW
Rated Voltage	380V（Special voltage customization）	Rated Frequency	50Hz（Special frequency customization）
Poles	4	Protection Degree	IP54
Cooling Mode	IC411	Insulation Class	F
Operation Mode	S1	Installation Mode	B3
Wiring Mode	Y/?

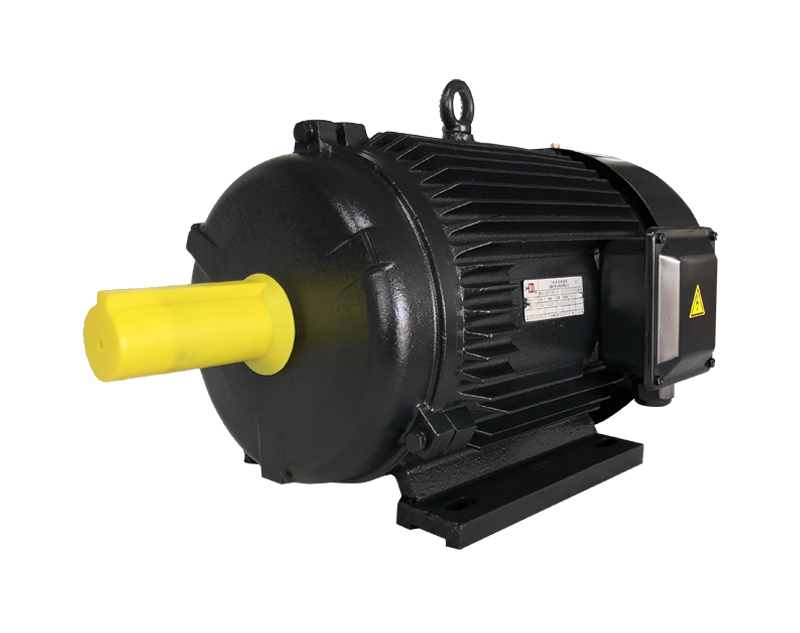

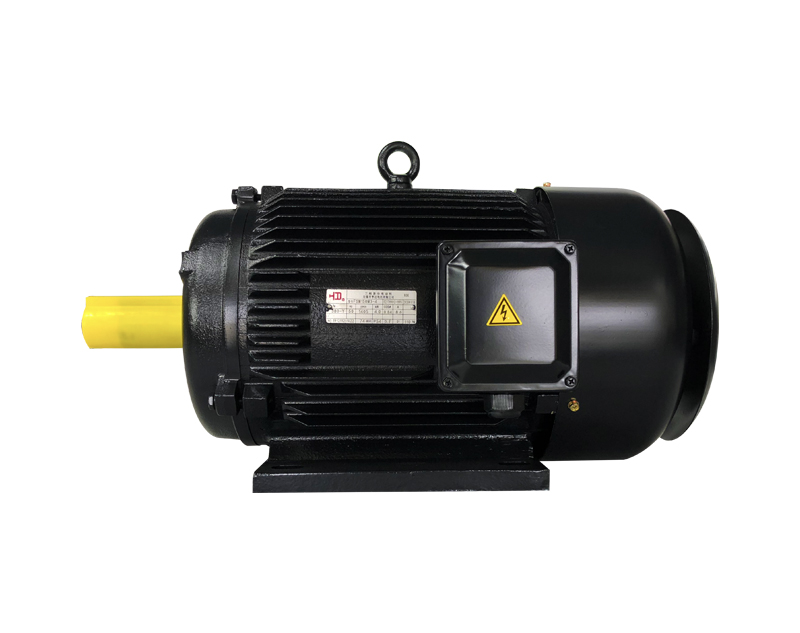

FSM three phase asynchronous motor

This type of motor is specially designed for carding cylinder (large drum). It is mainly suitable for working under the conditions of large moment of inertia, long starting time, much dust, short fiber and high temperature and humidity.

Operating conditions

-15°C~+40°C

Ambient air temperature

≤90% (At25°C)

Monthly average maximum relative humidity of ambient air

≤1KM

Altitude

Model	Rated Power	At full load				Locked Torque / Rated Current	Locked Torque / Rated Torque	Max. Torque / Rated Torque	Weight
	Rated Power	Current	Speed	Efficiency	Power Factor	Locked Torque / Rated Current	Locked Torque / Rated Torque	Max. Torque / Rated Torque	Weight
	kW	A	r/min	η	cosΦ	Ist/IN	Tst/TN	TM/TN	kg
FSM150M2-4	3	6.5	1440	84	0.84	6.5	3	3.5	95
FSM150M3-4	4	8.6	1440	84	0.84	6.5	3	3.5	100
FSM160M2-4	5.5	11.9	1440	84	0.84	6.5	3	3.5	110
FSM160M3-4	7.5	16.1	1440	84	0.84	6.5	3	3.5	115
